“LCD/OLED 패널에 필름을 부착하는 장비”

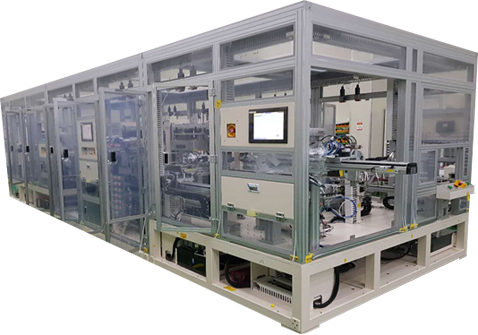

Vacuum Type
Attaching Flexible OLED Panel to Cover Glass or Cover Film.
OLED Panel will be Load to Down Chamber, Cover Glass or Cover Film will be Load to Up Chamber.
PDMS Pad is the intermedium in the Attaching Process
- Feature of System
-
- 1. Exclusive laminating EQ for small size Panel and High Accuracy
- 2. Excellent mass product ability Tact Time 5.5 sec /7 Inch
- 3. Attachment Accuracy ± 100㎛
- 4. Soft to Hard or Soft to Soft attach machine
- Application Area
-
- 1. OLED Panel : Cover Glass/Cover Film Laminator
- 2. OLED Panel : SCF film Laminator
- 3. OLED Panel : Cell protect film Laminator
- 단위 이미지
-
-
Attach Unit
-
Peeling Unit
-
